engine wiring diagram

i need help finding an engine wiring diagram for a 12v 6b(no turbo....hoping im in the right forum) the engine is in a crane that was a repower and the company that did it(before i got it) replaced all the wires with white ones and half of them arent connected....and the worst of all someone removed the engine plate so i have no serial number any help is appreciated.

'03 F250 XL 6.0LK&N intake, mbrp 5" stacks, SCT X3 with tunes from innovative, 6" superlift, 315-75r-16,boost, pyro, fuel pressure, oil pressure gauges all in the a-pillar,h-11 studs, short throw shifter,fass 95/150 with complete custom fuel lines, south bend clutch, traction bars
Singles #118
B.O.M.B Squad #28
droolinforparts is offline
Sponsored Links
Advertisement

post #2 of 5 (permalink) Old 09-24-2009, 09:56 PM
Senior Member

BigRed Cummins's Avatar

Join Date: Dec 2008
Location: somewhere else
Posts: 572
Points: 36,995
Thanks: 31
Thanked 64 Times in 53 Posts
Garage
I am positive, that the wiring diagram is different, as only 6BT s came in these trucks. What specifically are you looking for? How to make it run? Whats it doing?

1992 W250-P-pump and some extra air, gone, but not forgotten.

2003 SVT Cobra

1984 Chevy K10

BigRed Cummins is offline
post #3 of 5 (permalink) Old 09-24-2009, 10:09 PM Thread Starter
Senior Member
Threadstarter

droolinforparts's Avatar

Join Date: Dec 2008
Location: vernon NJ
Posts: 777
Points: 30,412
Thanks: 12
Thanked 14 Times in 13 Posts
Send a message via AIM to droolinforparts
for some treason we have a scavanger that is killing the batt. but all the wires got replaced with the same color and half arent connected and i dont even know where to start so i would like to rewire the whole engine how much wiring is really for the turbo/how different can they be?

'03 F250 XL 6.0LK&N intake, mbrp 5" stacks, SCT X3 with tunes from innovative, 6" superlift, 315-75r-16,boost, pyro, fuel pressure, oil pressure gauges all in the a-pillar,h-11 studs, short throw shifter,fass 95/150 with complete custom fuel lines, south bend clutch, traction bars
Singles #118
B.O.M.B Squad #28
droolinforparts is offline
post #4 of 5 (permalink) Old 09-25-2009, 02:27 AM
Senior Member

BigRed Cummins's Avatar

Join Date: Dec 2008
Location: somewhere else
Posts: 572
Points: 36,995
Thanks: 31
Thanked 64 Times in 53 Posts
Garage

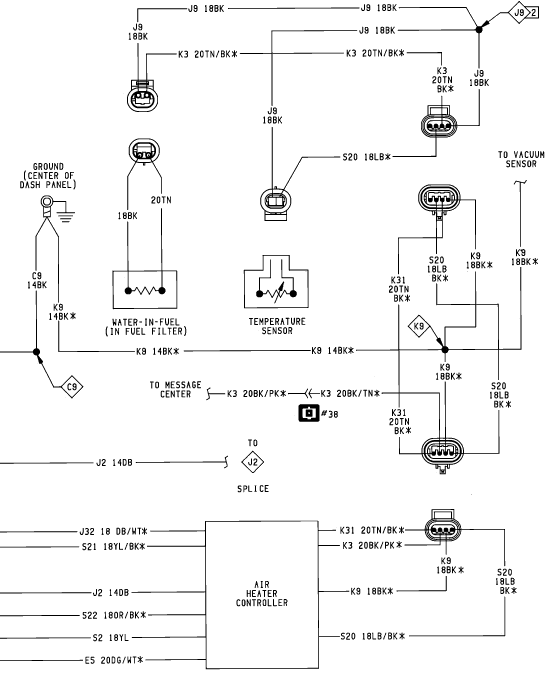

Heres the 4 diagrams I thought would be most useful. They are for an 89 W250 with the Cummins Diesel Engine (6BT) Hope it helps.





1992 W250-P-pump and some extra air, gone, but not forgotten.

2003 SVT Cobra

1984 Chevy K10

BigRed Cummins is offline
The Following User Says Thank You to BigRed Cummins For this addition to TDG:
droolinforparts (09-25-2009)
